2340MK WIRE HARNESS

Description

Part #TUH044-1818
OEM Part #CT900012




WIRE HARNESS

• Includes (1) Wire Nut (Part # RPT018)

Model(s) This Part Fits: 2540M, 2340M, 2540MK, 2340MK

Easy To Follow Step-By-Step Instructions Included

Notes: Existing connections should accommodate most units manufactured after 1/93. However some modifications may be necessary.

Installation Instructions

1. Before installing the wire harness make sure plug is disconnected from the power source and that there is no pressure in the chamber

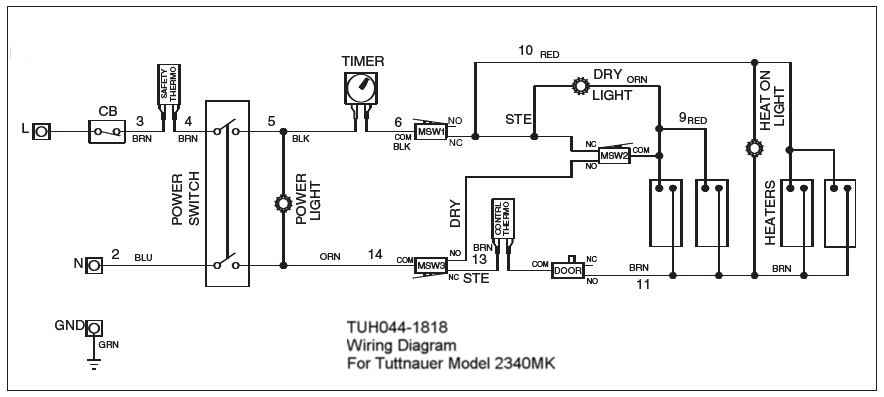

2. If applicable, disconnect existing wire harness and connect new wire harness per diagram below.
   (Note: Connector modification may be necessary on some units)


3. Check that all connections are correct and secure
4. Apply power to the sterilizer
5. Run a cycle to verify proper operation

NOTE:  For A Larger Diagram - Click Here
