MIDMARK M7: RCH118 NEW TYPE HEATING ELEMENT INSTALLATION GUIDE

MIDMARK HEATER ELEMENT INSTALLATION INSTRUCTIONS


When installing the Heater Element (Part #RCH118) in earlier M7 models, you can discard the "T" Spacer Bracket since it is not needed.

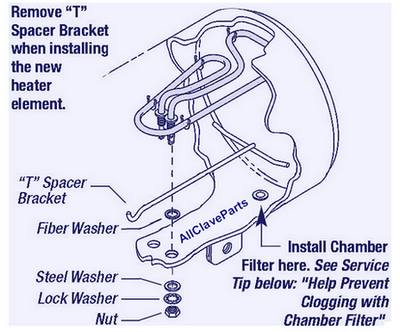

This newer style heater element includes spacers attached to the element. See the figure below



Please note that with some models, it is common that the spacers will not come in direct contact with the chamber.

Service Tip

Help Prevent Clogging with Chamber Filter With the "T" Spacer Bracket removed, and the new shape of the Heater Element (Part #RCH118), you now have access to the back of the unit.

This will allow you to easily install Fill/Vent Mesh Chamber Filters (Part #MIF062) into the Water Fill and Exhaust lines to help prevent clogging. See the figure above.
