Description
Part #PCS235MC-9282
RELAY SOCKET (For Newer Models)
Model This Part Fits: Magnaclave Sterilizer (Newer Models)
| Application |
Power |
| Relay Type |
Holder |
| Relay Connection Type |
Circular Pin Terminals |
| Number of Terminals |
8 |
| For Switching Current @ Voltage |
10 A @ 300 V AC |
| Height |
2" |
| Width |
1.4" |
| Depth |
1.1" |
| Mounting Location |
DIN Rail, Surface |
| For DIN Rail Size |
35 mm |
| Mounting |
|
| Fasteners Included |
No |
| Hole Diameter |
0.17" |
| Number of Holes |
2 |
| Wire Connection Type |
Screw Terminals |
| Specifications Met |
UL Recognized Component, CSA Certified |
| RoHS |
RoHS 3 (2015/863/EU) compliant with exemption 8(b) - Cadmium in electrical contacts |

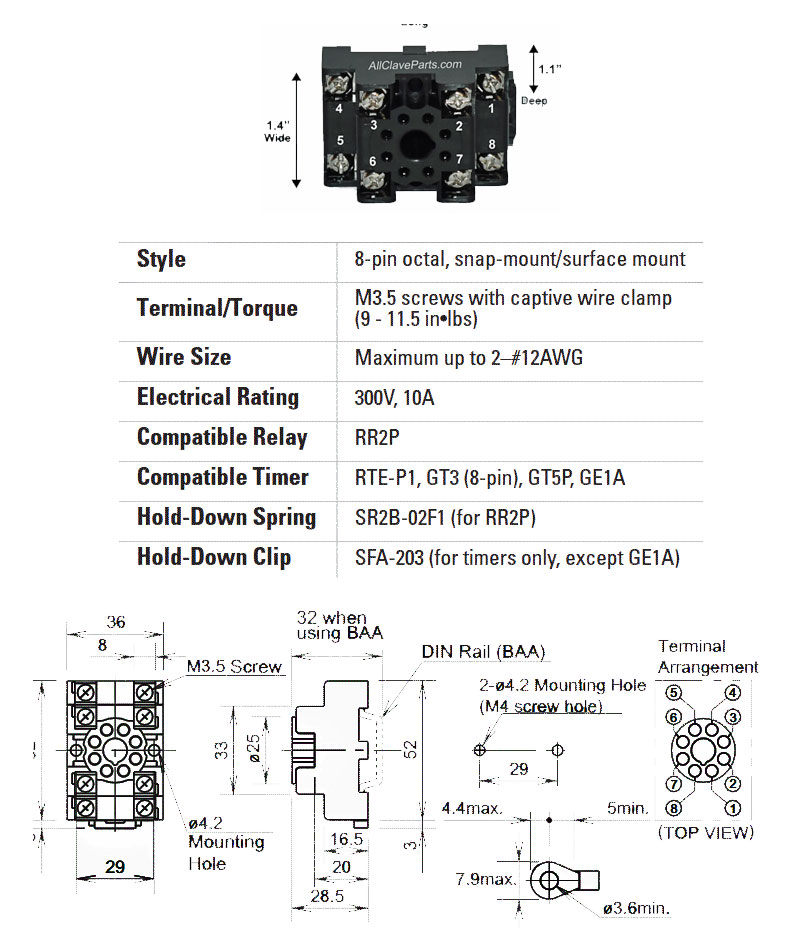

Click On Image For Larger Picture
