Statim 2000 Water Pump Replacement Instructions


These instructions are for the replacement of the Scican Water Pumps In All Statim & Sterimaster Units

Pump Replacement



To remove and replace the water pump safely & effectively, please follow these steps:
  1. Remove original pump assembly

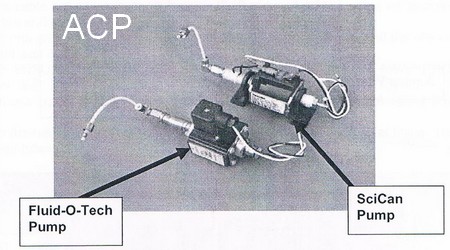

  2. If original pump was a Fluid-O-Tech Pump, Use Adapter Kit #01-108363S)
  3. Install new water pump assembly into the chasis with four #8-32x ½ machine screws and four #8 washers provided. Apply with Thread Locking Compound (e.g. Permalok LM113) on thread ends

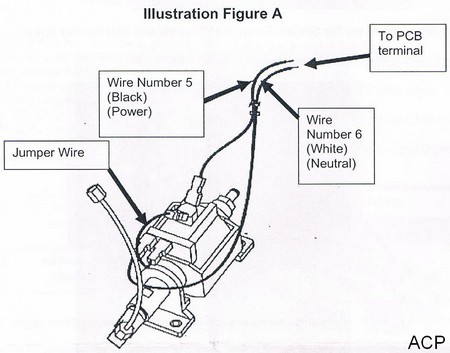

  4. Make electrical connections as shown in figure A below


    5. Caution
    • Do not mix and match pumps with pump orfice tubings. The replacement pump has been sized with orfice tubing as a matched set.
    • Do not overtighten the compression nut at the boiler side of the orfice tubing.
    • Make sure the pump inlet tubing is not kinked or twisted after installation
    • Prime the pump before turning on the sterilizer



In-Line Filter Installation

Instructions For Installing The In-line Filter for Statim 2000 Model Sterilizers
  1. Ensure the Water Reservoir is empty before attempting to install the New Filter
  2. Cut the Cable Ties which fasten the the Shaped Silicone Tube between the Water Pump and the Drain Tee and remove the Tubing
  3. Attach one end of the 4" length of Tubing included in the kit to the Drain Tee and the other end to the inlet side of the In-line Filter


    4. Note: Make Sure The Arrow On The In-line Filter Is Facing Away From The Drain Tee

  4. Attach one end of the 5.3" long "Shaped" Tubing included in the kit to the outlet side of the In-line Filter

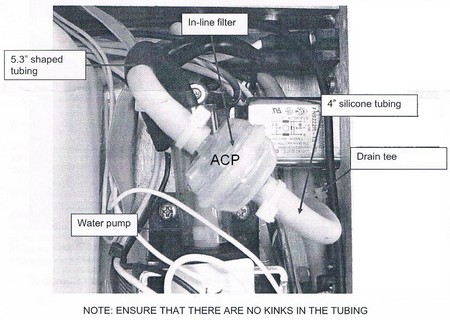

  5. Attach the remaining end of the "Shaped" Tubing to the Water Pump Inlet Fitting. The installed Tubing and the In-line Filter should be oriented as shown below




  6. Secure each connection using the supplied Cable Ties
  7. Included in the Kit for the In-line Filter are
    • One 4" length of Tubing
    • One 5.3" length of "Shaped" Tubing
    • One In-Line Filter
    • Three Cable Ties
