Description
Part #TUC063-1670
Tuttnauer Part #CT836101 (After 1993)
CONDENSATION COIL
- Material: Copper
- Includes Condensation Coil, Compression Nut and Ferrule
- Installs at the front of the Water Reservoir with the exhaust port towards rear of machine
- (See notes below:)
Fits: Water Reservoir
Model This Part Fits: Tuttnauer 2340EK Autoclaves Manufactured After 1993

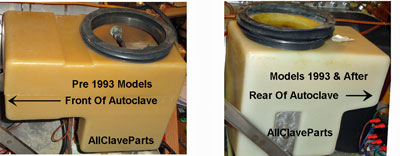

If you cannot find the manufactured date on your plate, or it is missing, here is the easiest way to tell which condensation coil you need
Match the overhang above the base of the water reservoir. If it is pointing to the front, then you have a pre 1993 model. If it is pointing to the rear.....then you have a unit manufactured after 1993
Also: Use This Condensation Coil if the coil joins the reservoir at the left front and vents towards the rear of the machine. If the coil joins the reservoir at the left rear and vents towards the front of the machine, then use Part #TUC041-1669
