Delta XL Removing The Cabinet Cover



How To Remove & Reinstall The Cover on The Delta XL10 Autoclave

You will need to remove the cover on your autoclave for troubleshooting & repair. Here is how you do it

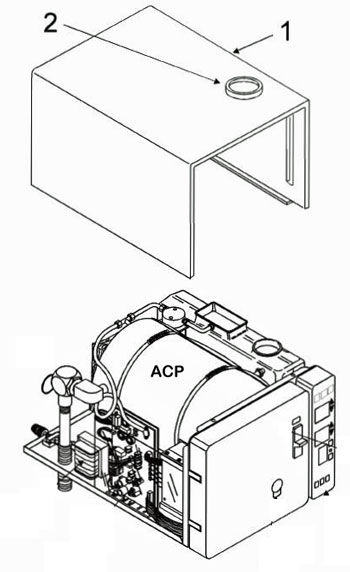

  1. To remove the Cover, remove only the two bottom screws on the rear panel
  2. Remove the Water Reservoir Fill Cup
  3. Slide cover to rear, then lift front of cover slightly to clear top of reservoir

When you have finished and are ready to reinstall the cover:

Note: When replacing the cover, make sure the lip of the front panel engages in slot along all edges. When in place, reinstall screws and reservoir fill cup.
