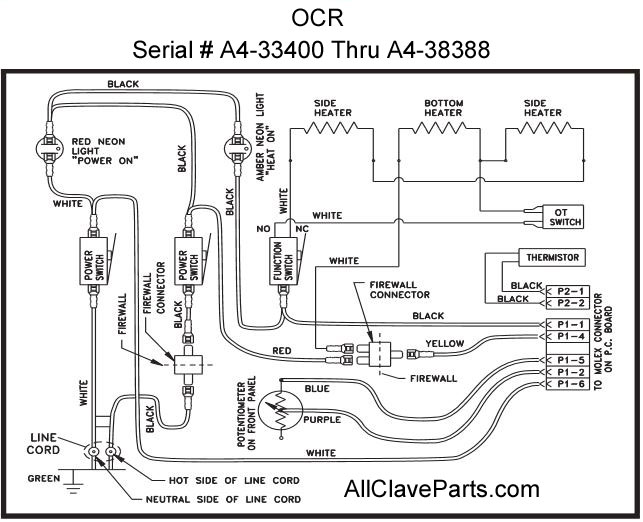

OCR Serial # A4-33400 Thru A4-38388

Use of this diagram will help you effectively troubleshoot your Pelton Crane OCR Autoclave & make sure everything is wired correctly

Before using this diagram, Double Check Your Serial Number and make sure it falls within the range of A4-33400 & A4-38388
