Software Versions and Corresponding Calibration Procedures

Our Most Comprehensive Statim Autoclave Troubleshooting Guides Yet

Statim 2000 Units

Identifying Software Versions



To identify a units software version, power it OFF and back ON again



During start up, a number is briefly displayed in the upper right-hand corner of the LCD that indicates which software is installed

This number is also printed on the label attached to the U14 microprocessor and the U8EEPROM device on the Controller Board

Note that units with Revision 3.x or 4.x controller boards WILL NOT display the software revision on the LCD display (These units will display "SELECT A CYCLE" instead os software version)

The software version number is the character to the immediate right of the R

Display on Power-Up

S503R204 S503R204
S503R100 is software version 1.00
S503R101 is software version 1.01
S503R102 is software version 1.02		 S503R204 is software version 2.00 revision 4

Microprocessor Label

Statim 2k Microprocessor Label

01-104455
S52O3R204
Jan. XX03

EPROM Label


Statim 2k EPROM Label

S5202R102
0301
03=Model Year/01=Model Week



Model Approximate Year of Manufacture Software Revision Steam Generator Type Software Revision Pump Compressor Pressure Transducer Validation Thermocouple Calibration Procedure
1000 1992 - 1995 N/A Aluminium
Internal		 3.x/4.x - N/A N/A N/A 1
2000 1992 - 1995 N/A Aluminium
Internal		 3.x/4.x - - N/A N/A 1
2000 1995 - 2005 S2O2R1xx
S2O2R2xx		 Aluminium
Internal		 2.x/5.x - - N/A N/A 2
2000 2005 - 2007 S2O2R5xx Aluminium
Internal		 6.x - - N/A - 3
2000 2007 S2O2R6xx Aluminium
Internal		 7.x - - N/A - 4
2000 G4 2010 ? S2O2R7xx Aluminium
Internal		 7.x - - N/A - 8
2000S 1995 - 2004 S2S2R1xx
S2S2R2xx		 Aluminium
Internal		 2.x/5.x - - -
(60 psi)		 N/A 5
2000S 2004 - 2005 S2S2R4xx Stainless Steel 6.x - - -
(68 psi)		 N/A 6
2000S 2005 - 2007 S2S2R5xx Aluminium
Internal		 6.x - - -
(68 psi)		 N/A 6
2000S 2007 S2S2R6xx Aluminium
Internal		 7.x - - -
(68 psi)		 N/A 7
2000S G4 2010 S2S2R7xx Aluminium
Internal		 7.x - - -
(68 psi)		 N/A 9

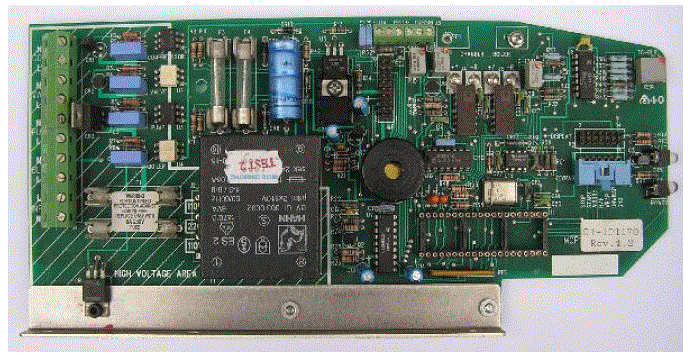

Statim 2000 PC Board 1992 - 1995

Statim 2000 Revision 3.x/4.x type board (1992 - 1995)

Typical features

  • Revision number is located on the bottom right hand side of the board
  • Single, rectangular microprocessor
  • Main fuses (F3 & f4) vertically located above black Hahn Transformer Labeled TEST2)

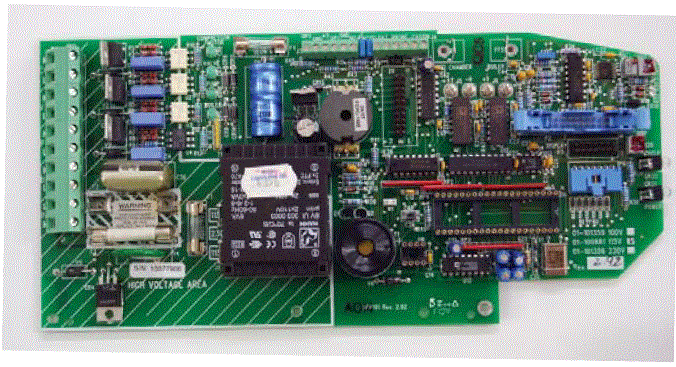

Statim 2000 PC Board 1995 - 2004

Statim 2000 Revision 2.x/5.x type board (1995 - 2004)

Typical features

  • Revision number located on the bottom right hand side
  • Rectangular microprocessor plus EPROM
  • "W1" jumper for calibration
  • Main fuses (F3 & F4) (Horizontally located to the Left of the Hahn Transformer
  • Blue "pressure interface/printer" connector

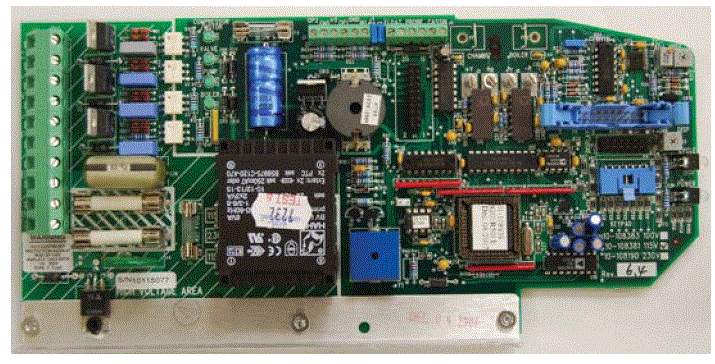

Statim 2000 PC Board 2004 - 2007

Statim 2000 Revision 6.x type board (2004 - 2007)

Typical features

  • Revision number bottom right hand side
  • Square microprocessor plus EPROM
  • "W1" jumper for calibration
  • Blue "pressure interface/printer connector"

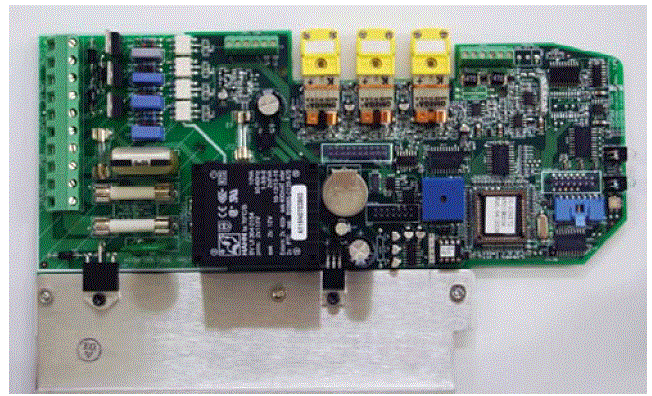

Statim 2000 PC Board 2007 to Present

Statim 2000 Revision 7.x type board (2007 to present)

Typical features

  • Up to revision 7.30, the revision number is on the top right hand side (printed vertically)
    From revision 7.4 onwards, the revision number is on the bottom left hand side (printed horizontally) under the connector J1
  • Square microprocessor plus EPROM
  • NO "W1" jumper for calibrationM/li>
  • NO Blue "pressure interface/printer" connector
  • All components integrated on single board
  • Surface mount type component
  • "Push in" yellow thermocouple connectors
