DSD-201 DISINFECTANT FILTER ASSEMBLY

Description

Part #MTA002-9232
MEDIVATORS Part #MF01-0011

DISINFECTANT FILTER ASSEMBLY

• 12 Per Package
• 65 micron
• 1/4" flow male quick coupling (Red-Inlet) and (Grey-Outlet)

Includes:

Tubing (3/8" ID x .594" OD Clear Braided) (Part #RPT879)

Fits: Disinfectant Line

Model This Part Fits: Medivator DSD-201 Automated Endoscope Reprocessor

1. Place a container or absorbent cloth under the disinfectant filter to collect any residual liquid
2. Remove and discard the used disinfectant filter
3. Visually inspect DSD connectors for lint or debris buildup and clean as required
4. Locate new disinfectant filter and identify the red and gray colored ends. The colored ends facilitate correct filter connection and ensure proper fluid flow through the filter

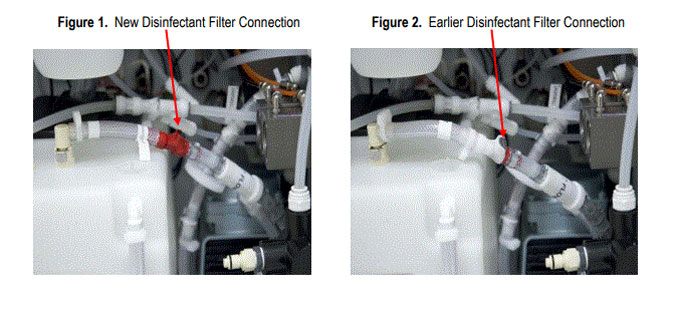

5. Install new disinfectant filter by connecting the gray colored, male end of the disinfectant filter to the gray colored, female quick-connect fitting. Connect the red colored, male end of the disinfectant filter to the red colored, female quick-connect reservoir fitting (figure 1). Verify the flow arrow on the disinfectant filter points away from the reservoir tank
   Note: On earlier DSD-201, the quick-connect, female reservoir fitting may be white or cream colored (figure 2)


6. Record the date of the disinfectant filter change in the log book
