How To Install The Midmark M9 Door Gasket



Following the instructions below will lead to the trouble free installation of your New Door Gasket

How To Install The Midmark M9 Door Gasket (MIG027-1196)

  1. Remove the old door gasket.
  2. Clean the gasket groove in the door, and chamber face.

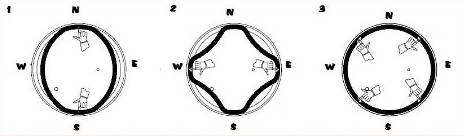

  3. Do Not Try Installing The Gasket by Following the Circle..... Use the “South-East-West-North” method
    • Begin installing the gasket at the bottom of the door
    • Then install the left side
    • Then the right side
    • Finish at the top by squeezing in any of the excess making sure that the gasket fits flush all the way around



Door Gasket Installation
